Description
Highlights
20% HIGH PHOTOELECTRIC CONVERSION RATE & SUFFICIENT ENERGY
Details
Feature
*20% HIGH PHOTOELECTRIC CONVERSION RATE & SUFFICIENT ENERGY: Adopt premium Polycrystalline and high light transmission layer of PET, offering 20% photoelectric conversion rate, which 3% higher than normal Solar panel. Powerful enough to generate powerful currents and charge your device in several hours. No worry about your phone running out of power.

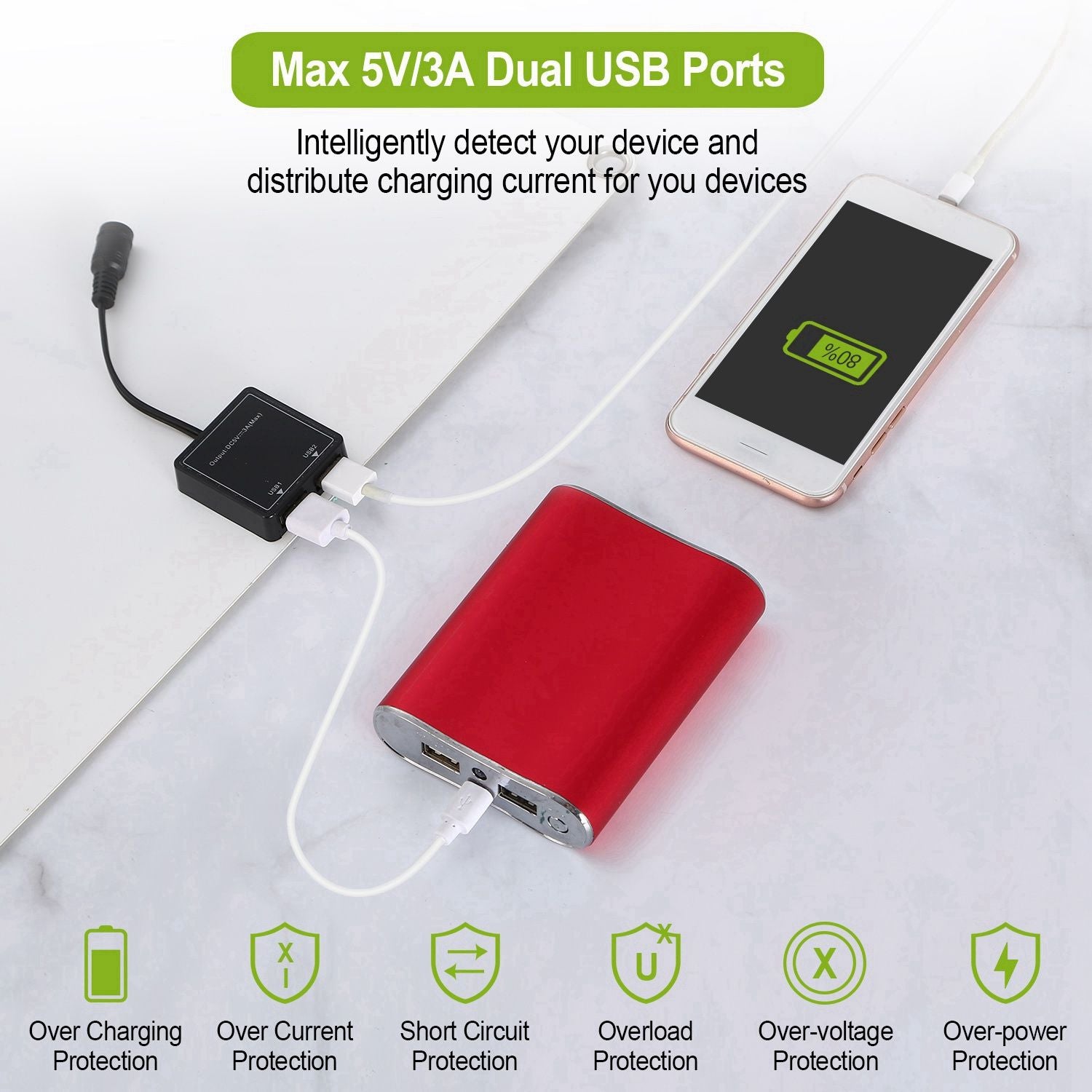

*5V/3A DUAL USB PORTS: Adopt advanced charging algorithm, dual USB ports (5V/2A & 5V/3A) intelligently detect your device and distribute the charging current your device need. Full protect your battery from overcharge, over discharge, over voltage, short circuit, etc. Built-in blocking diode to prevent reverse discharging, not only maintains the battery lifetime but also extends its usage life.

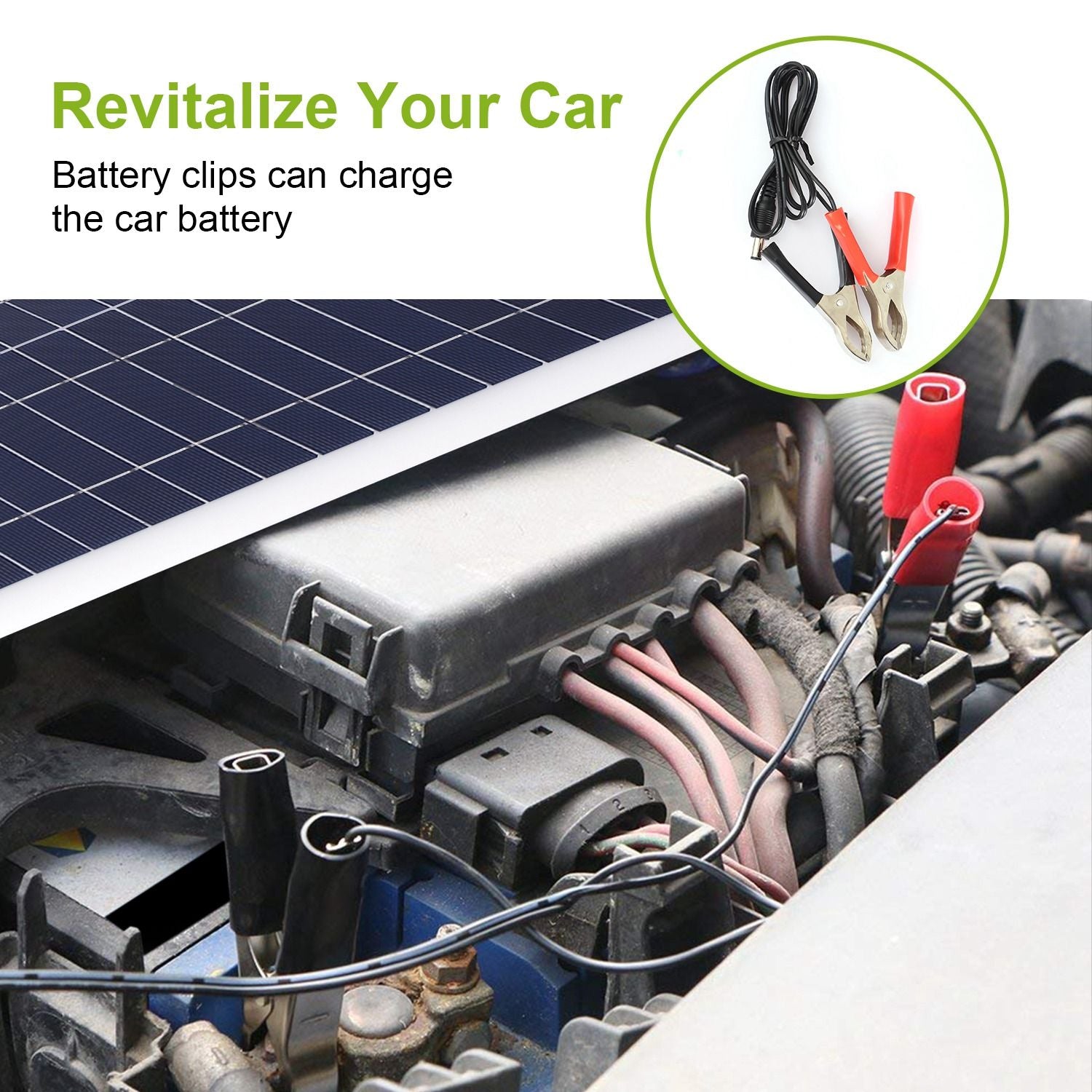

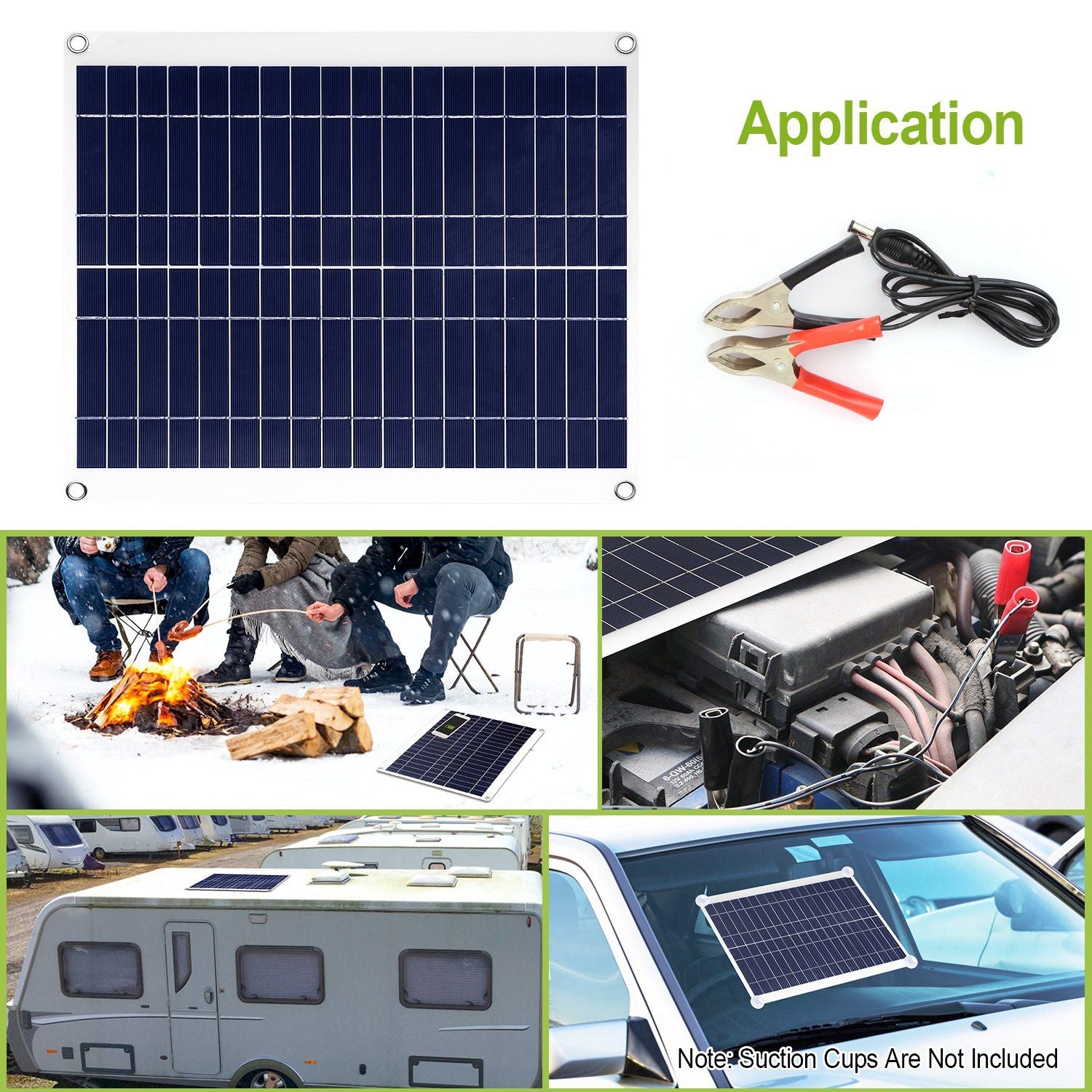

*CUTTING DOWN BILLS: Comes with 1 pair of battery clips, charge for your car by Solar power, provide enough power for all your electronic devices while traveling.

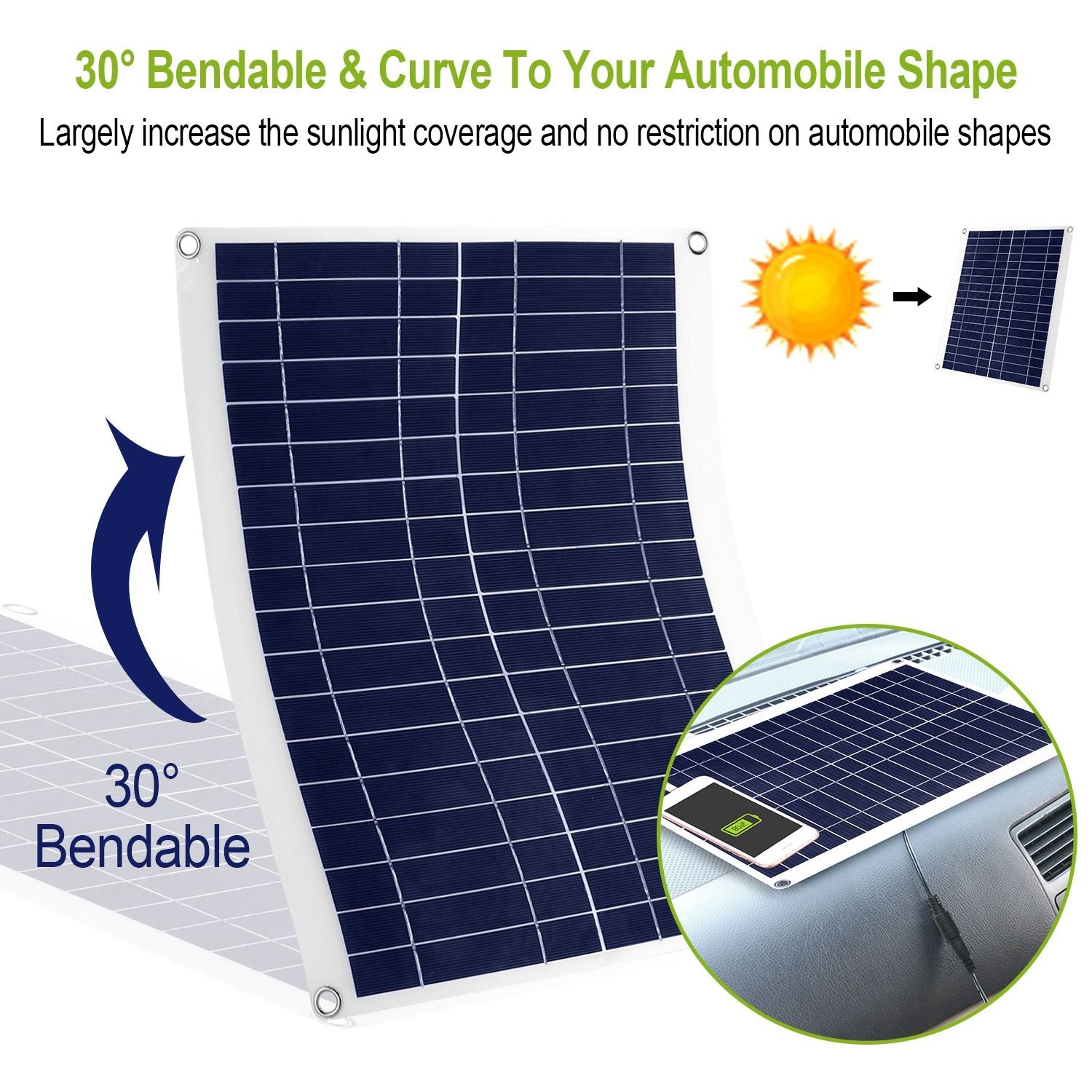

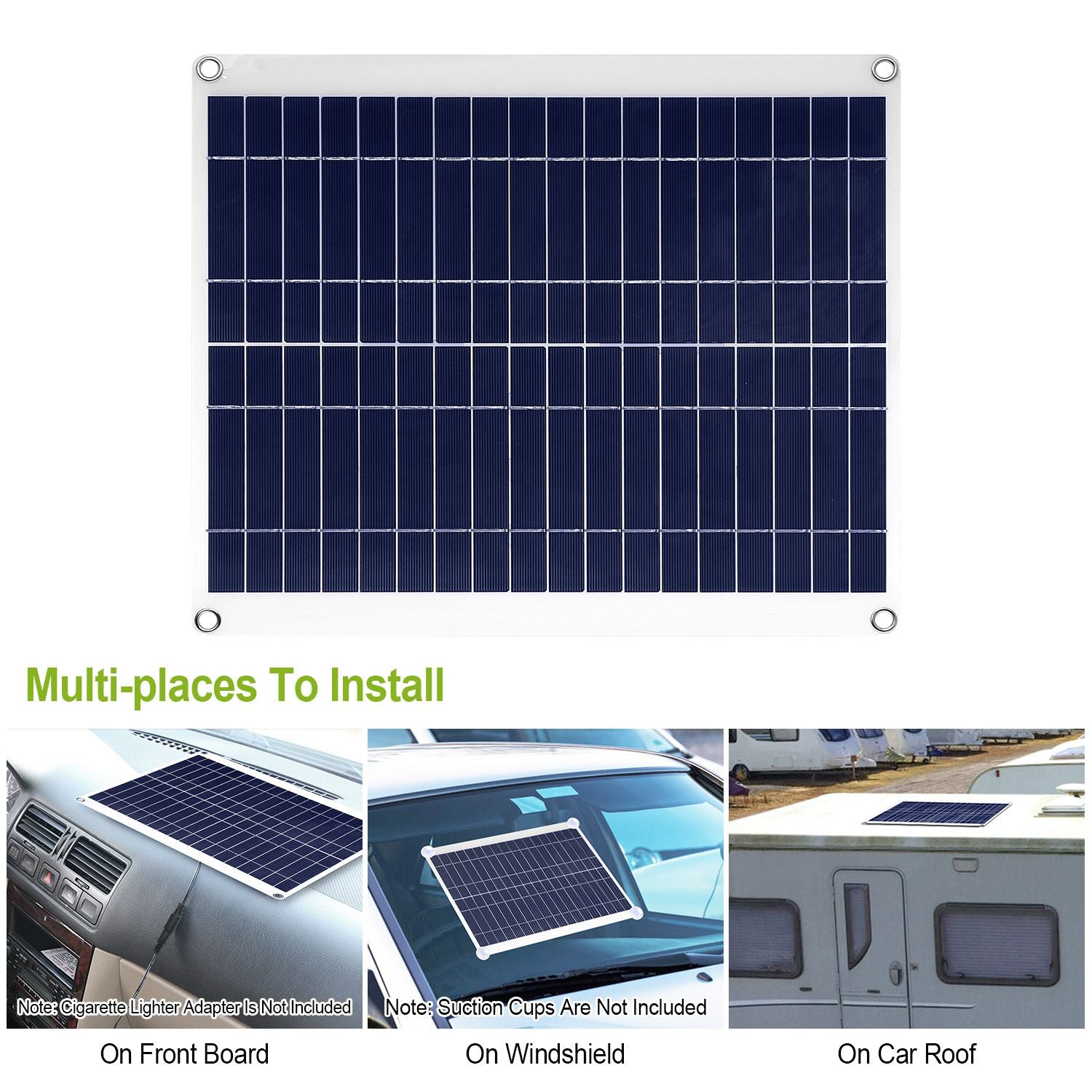

*BENDABLE & DURABLE: Made of tough material, it is extremely durable. Flexible solar panels with a maximum bend of 30°, capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.

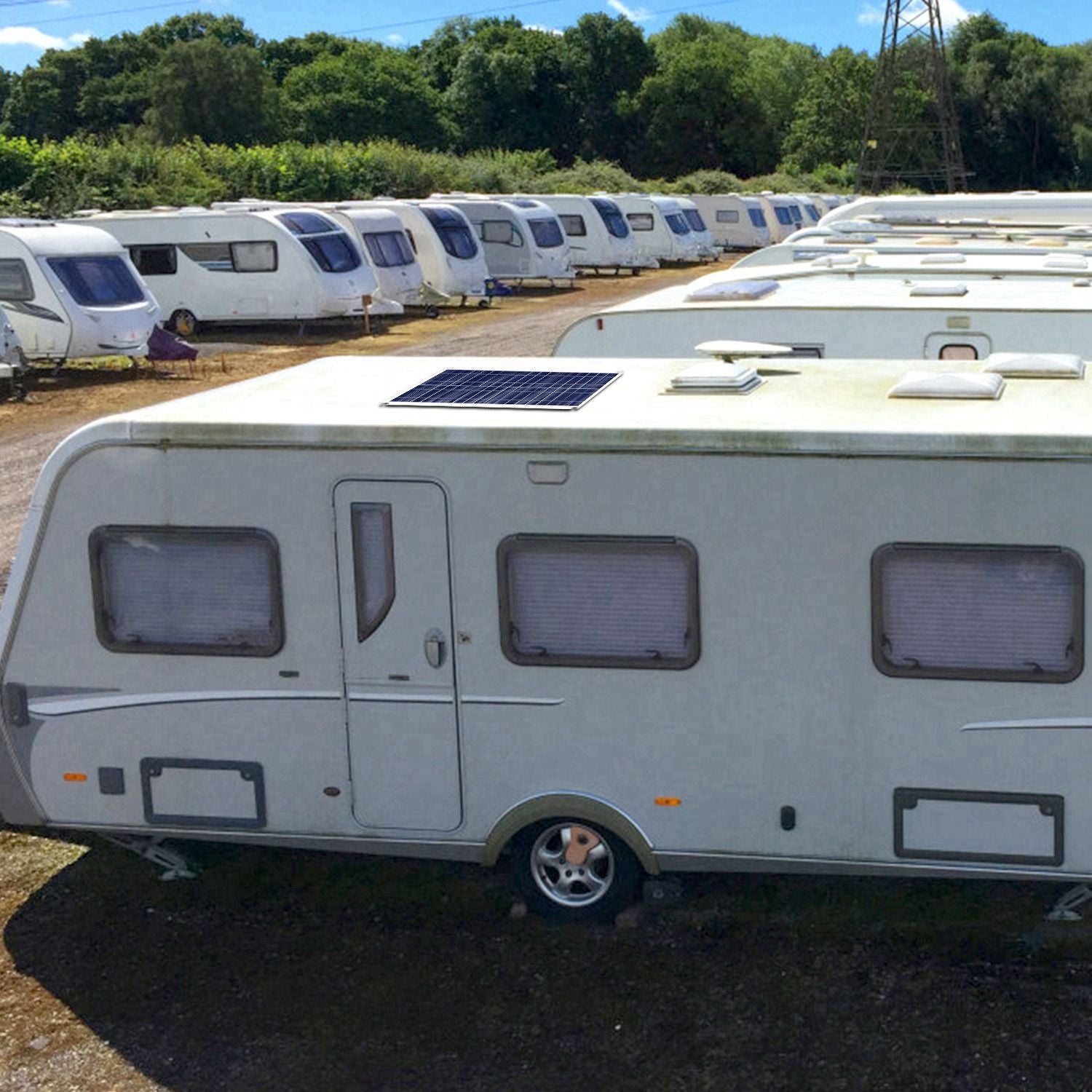

*IP68 WATERPROOF & WIDE APPLICATIONS: IP68 Waterproof performance resists any bad weather, such as snow and rain. Good companion for travel. Charging 12V rechargeable batteries in emergency, suitable for security cameras, laptops, car batteries, RVs, ships, outdoor agriculture, planting, tourism, solar street lights, etc.
Note:
1. Please note that the protective plastic film on the panel surface is supposed to peel off.
2. Please don't place the charger in the rainy day due to low photoelectric conversion rate.

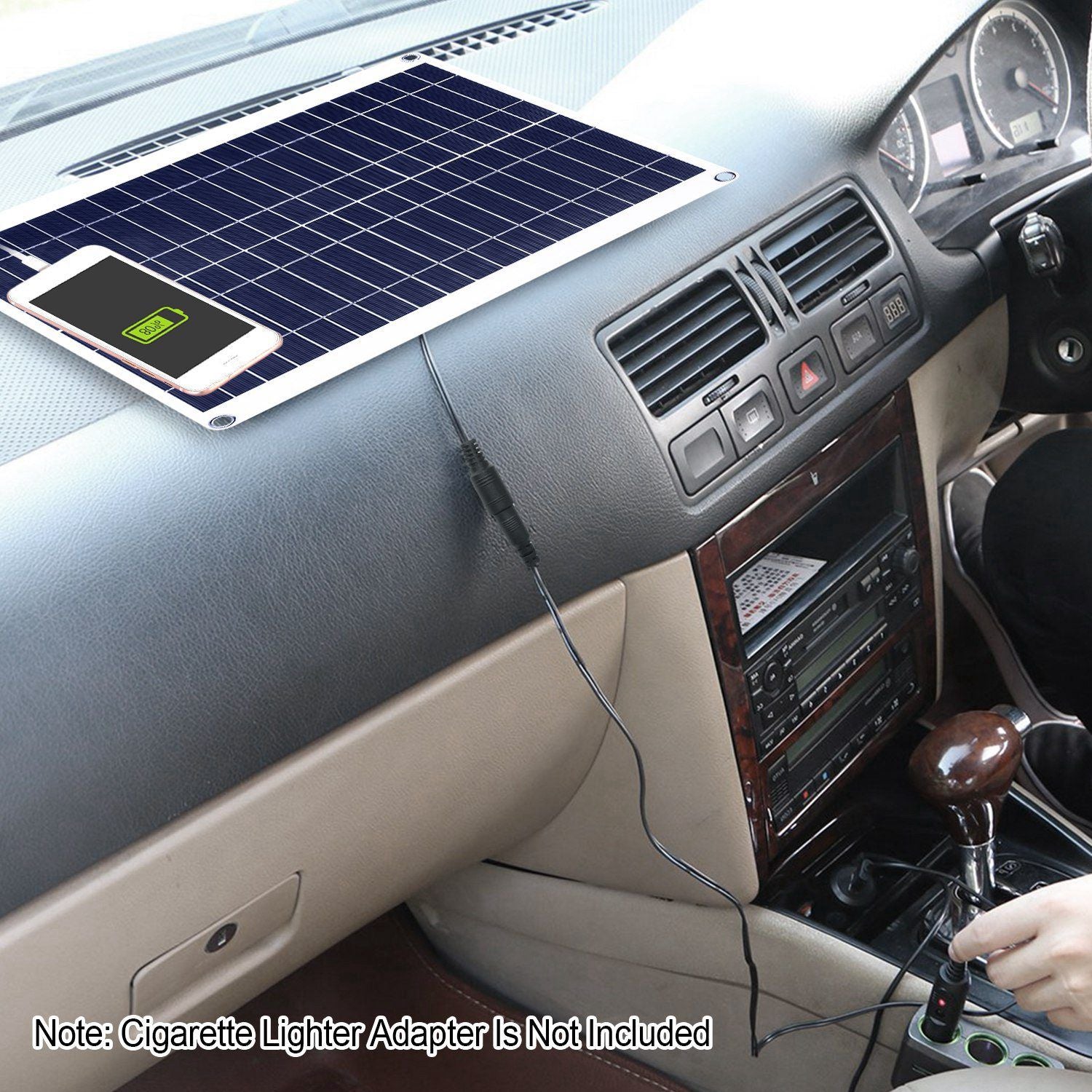

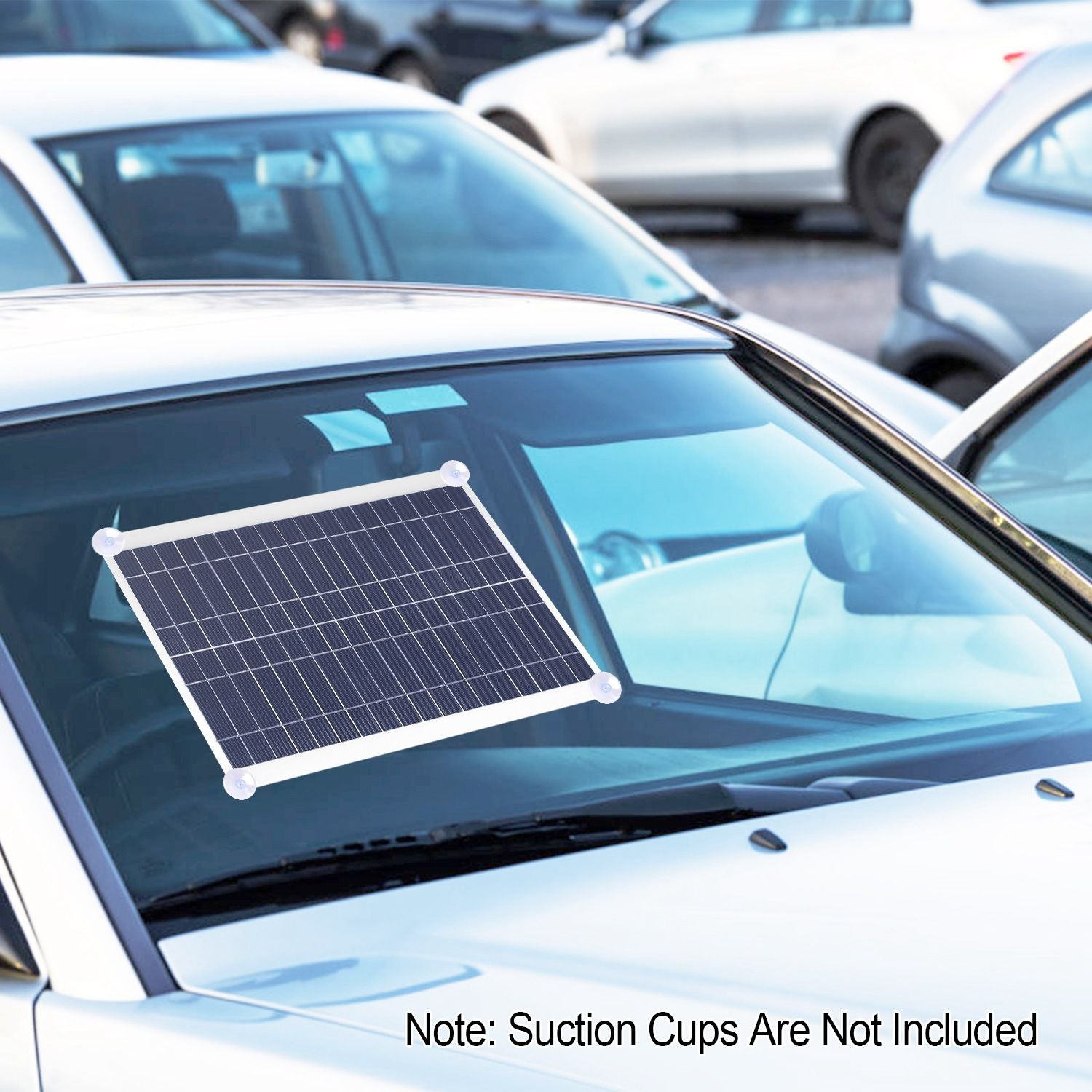

3. Cigarette lighter adapter and suction cups are not included.
Specification
Product Type: Solar Panel For Automobile Motorcycle
Waterproof Performance: IP68
Photoelectric Conversion Rate: Up To 20% (Depend On Environment)
USB Output: 5V/2A & 5V/3A (Intelligent Recognize)
Material: High Light Transmission Layer PET+EVA+ Polycrystalline
Optimal Power [Pmax]: 25W±0.25W
Working Voltage [Vmp]: 18V±0.3V
Power Supply Voltage: 12V
Working Current [lmp]: 1A±0.15A
Short Circuit Current [lsc]: 1A±0.15A
Open Circuit Voltage [Voc]: 20V±0.8V
Temperature Coefficient Of The Voltage: (0.06510±0.15)%/℃
Temperature Coefficient Of Current:-(160±10)mA/℃
The Temperature Coefficient Of Power:-(0.50.05)%/℃
Maximum System Voltage: 18V
Ambient Temperature:-40/℃-+85/℃(40°F to185°F)
Air Resistance: 50pst (2400pascals)
Snow Resistance: 113psi (5400pascals)
Hail Impact:25mm(1inch)at23m/s(52mph)
Alligator Clip Cable: 98cm/38.5in
Color: White & Blue
Item Size: 41.6x 36.5x1.5cm/16.37x14.37x0.59inches
Item Weight: 553g/1.21lbs
Package Contents
1x Solar Panel

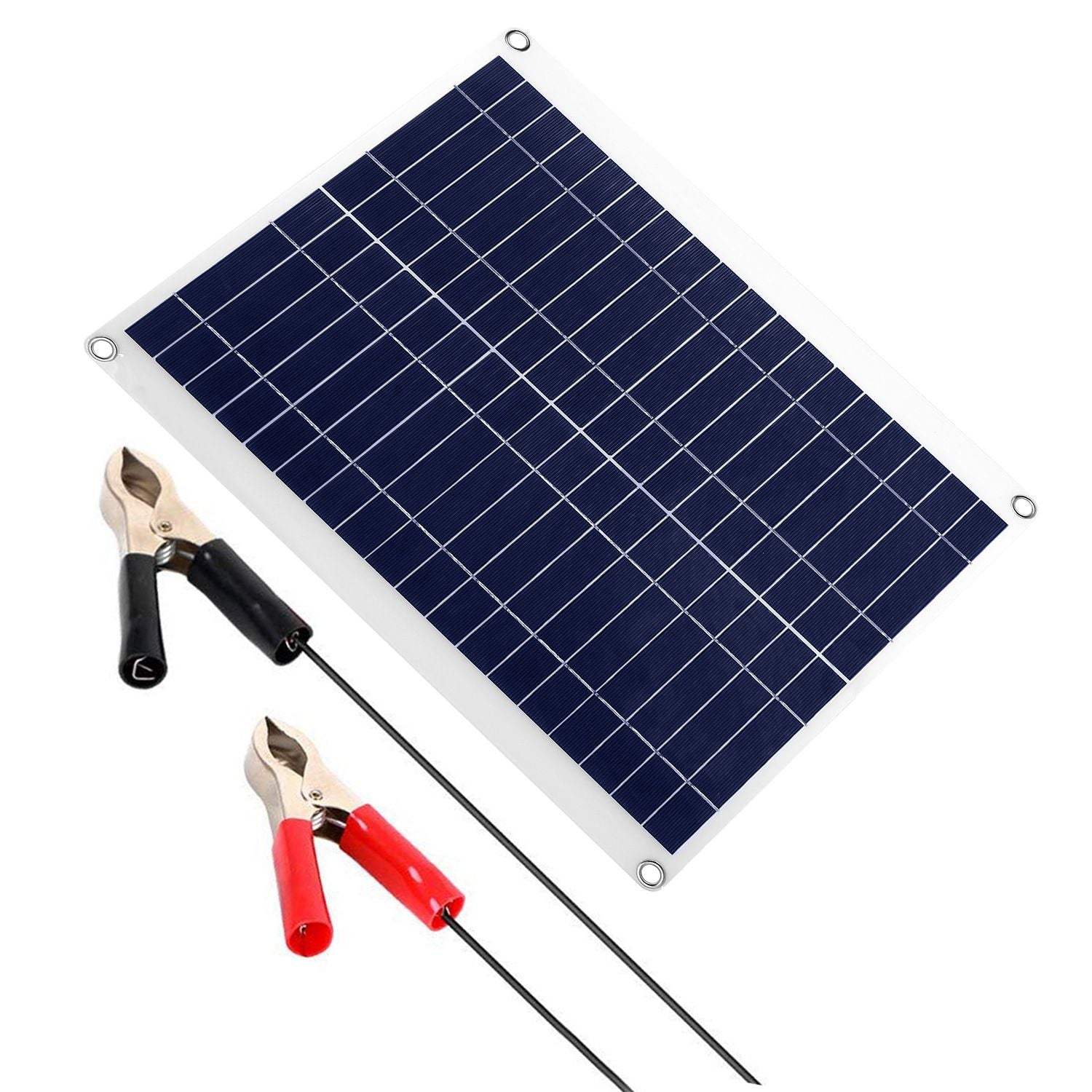

1 x Alligator Clip
1 x Cigarette Lighter
4x Suction Cups
1x User Manual
